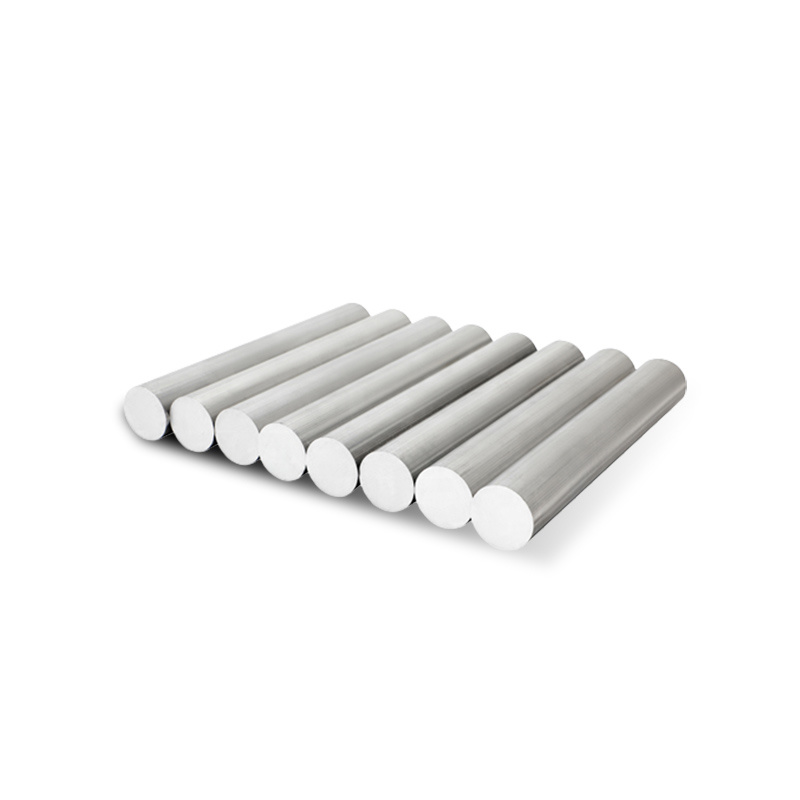

Incoloy 925 Bar
SKU: HC-1146016203734122496
Incoloy 925 bar is made of a nickel-based high-temperature alloy that is widely used in industrial fields under various extreme environments resulting from its excellent corrosion resistance and high-temperature strength.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
Incoloy 925 bar is made of a nickel-based high-temperature alloy that is widely used in industrial fields under various extreme environments resulting from its excellent corrosion resistance and high-temperature strength. Incoloy 925 alloy is primarily composed of nickel, chromium, iron and other elements, and also contains a certain amount of aluminum, titanium. This alloy has good corrosion resistance and can maintain stable performance in oxidizing and reducing environments. In addition, Incoloy 925 also has good high-temperature strength and creep properties, and can maintain good mechanical properties in high-temperature environments. Other excellent properties include excellent welding and manufacturing processability. Besides, Incoloy 925 bars can resist oxidation and hot corrosion in high-temperature oxidizing environments. One thing to note is Incoloy 925 bar shows good resistance to stress corrosion cracking in chlorine-containing media and is suitable for seawater environments and chemical process applications containing chlorides.
Specifications
Product Parameters
| Product Name | Incoloy 925 Bar | |
| Outer Diameter | Round Bar | 4mm-500mm |
| Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) | |
| Square Bar | 18mm-47mm (11/16″ to 1-3/4″) | |
| Flat Steel | 1/2 "to 10",Thickness: 2mm-150mm,Can provide customized | |
| Length | 1-6 meters,Length can be customized | |
| Standard | ASTM,AISI,JIS,GB,DIN,EN,etc. | |
| Surface | Black,Bright Polished,Rough Turning,Matt Surface Treatment,NO.4,BA,etc. | |
| Certificate | ISO,SGS,BV | |
| Production Technology | Hot Rolling,Cold Rolling | |
Chemical Composition
| C | Al | Si | P | S | Ti | Cr | Mn | Fe | Ni | Cu | Nb | Mo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.03 max | 0.1 - 0.5 | 0.5 max | 0.03 max | 0.03 max | 1.9 - 2.4 | 19.5 - 22.5 | 1.0 max | 22.0 min | 42.00-46.00 | 1.5 - 3.0 | 0.5 max | 2.5 - 3.5 |
Mechanical Properties
| Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
| 85 | 35 | 30 |
Physical Performance
| Units | Temperature in°C | |
| Density | 8.14 g/cm³ | Room |
| Specific Heat | 0.105 Kcal/kg.C | Room |
| Melting Range | 1370-1400°C | - |
| Modulus of Elasticity | 196 KN/mm² | 20° |
| Electrical Resistivity | 113 µΩ.cm | 25° |
| Coefficient of Expansion | 14.1 µm/m °C | 25 - 100° |
| Thermal Conductivity | 11.1 w/m-° K | 25° |
