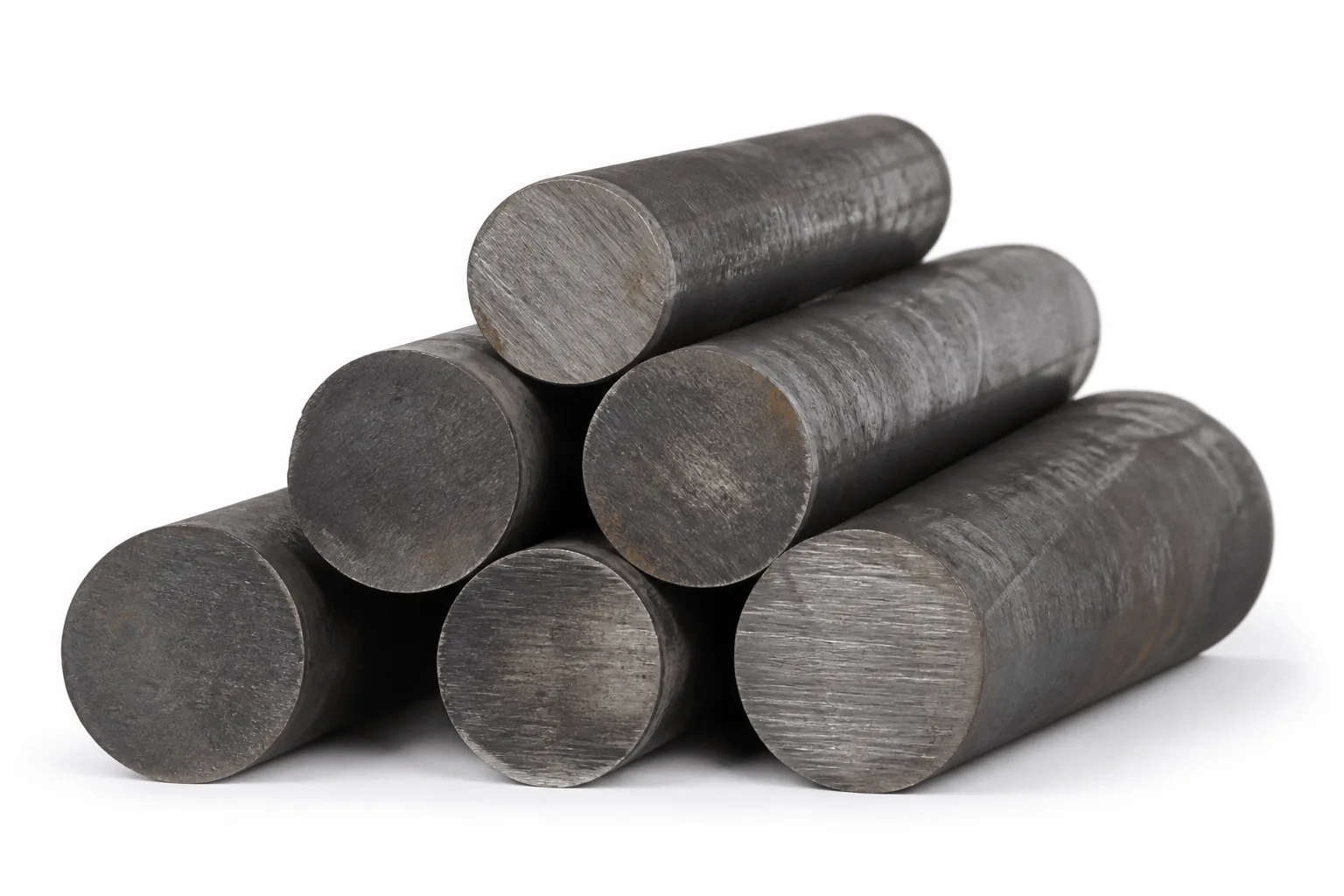

EN8/EN9 En Series Round Steel Bar
SKU: HC-1137085819796545536
EN8 is a medium carbon steel with a carbon content of 0.25% to 0.60%. It is often used to manufacture mechanical parts, bearings, gears and other parts. It has high strength and wear resistance and can obtain high hardness and strength after heat treatment.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
EN8 is a medium carbon steel with a carbon content of 0.25% to 0.60%. It is often used to manufacture mechanical parts, bearings, gears and other parts. It has high strength and wear resistance and can obtain high hardness and strength after heat treatment. The chemical composition of EN8 includes carbon (C), silicon (Si), manganese (Mn), phosphorus (P), sulfur (S) and other elements. The carbon content is the most important, usually between 0.36-0.44%. EN8 has good weldability, and it can be welded by conventional welding methods, such as arc welding, gas welding, etc. However, when performing high-intensity welding, care needs to be taken to control the welding heat to prevent material deterioration. EN8 carbon steel bars are widely used in the manufacturing industry, especially where high strength and wear resistance are required. They are often used to manufacture bearings, pins, mechanical parts, etc..
Specifications
Product Parameters
| Product Name | EN8/EN9 En Series Round Steel Bar | |||
| Standard | EN / DIN / JIS / ASTM / BS / ASME / AISI,etc. | |||
| Common Round Bar Specifications | 3.0 - 50.8 mm,Over 50.8 - 300mm | |||
| Flat Steel Common Specifications | 6.35x12.7mm,6.35x25.4mm,12.7x25.4mm | |||
| Hexagon Bar Common Specifications | AF5.8mm - 17mm | |||
| Square Bar Common Specifications | AF2mm - 14mm,AF6.35mm,9.5mm,12.7mm,15.98mm,19.0mm,25.4mm | |||
| Length | 1 - 6 meters,Size Accept Custom | |||
| Diameter(mm) | Hot Rolling R ound Bar | 25 - 600 | Cold Rolling Square Bar | 6 - 50.8 |
| Hot Rolling Square Bar | 21 - 54 | Cold Rolling Hexagon Bar | 9.5 - 65 | |
| Cold Rolling Round bar | 6 - 101.6 | Forged Rebar | 200 - 1000 | |
| Surface Process | Bright,Polished,Black | |||
| Other Services | Machining(cnc),Centerless Grinding(cg),Heat Treatment,Annealing,Pickling,Polishing,Rolling,Forging,Cutting,Bending,Small Machining,etc. | |||
Chemical Composition
| Grade | C % | Si % | Mn % | Cr % | Mo % | W % |
|---|---|---|---|---|---|---|
| EN-1A | 0.007 - 0.15 | 0.10 | 0.80 - 1.00 | S | P | - |
| 0.20 - 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 - 0.45 | 0.05 - 0.30 | 0.60 - 1.00 | S | P | - |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 - 0.60 | 0.05 - 0.30 | 0.5 - 0.80 | - | - | - |
| EN-19 (V 320) | 0.35 - 0.45 | 0.10 - 0.30 | 0.5 - 0.80 | 0.90 - 1.40 | 0.20 - 0.40 | |
| EN-24 (V 130) | 0.35 - 0.45 | 0.10 - 0.35 | 0.45 - 0.70 | 0.90 - 1.40 | 0.20 - 0.35 | NI |
| 1.3 - 1.8 | ||||||
| EN-31 R-100 | 0.90 - 1.20 | 0.10 - 0.35 | 0.30 - 0.75 | 1.00 - 1.60 | - | - |
| EN-36C E-200 | 0.12 - 0.18 | 0.10 - 0.35 | 0.30 - 0.60 | 0.60 - 1.10 | - | NI |
| 3.0 - 3.75 | ||||||
| EN-42 | 0.70 - 0.85 | 0.10 - 0.40 | 0.55 - 0.75 | - | - | - |
| EN-44 | 0.90 - 1.20 | 0.30 | 0.45 - 0.70 | - | - | - |
| EN-45 F-110 | 50 - 0.60 | 1.5 - 2.0 | 0.70 - 1.00 | - | - | - |
| EN-351 | 0.10 - 0.20 | 0.35 | 0.60 - 1.00 | 0.40 - 0.80 | 0.08 - 0.10 | NI |
| 0.60 - 1.00 | ||||||
| EN-353 | 0.10 - 0.20 | 0.35 | 0.50 - 1.00 | 0.75 - 1.25 | 0.08 - o.15 | NI |
| 1.00 - 1.50 |
Mechanical Properties
| Grade | Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Hardness | Japan He | AISI |
|---|---|---|---|---|---|---|
| EN-1A | - | - | - | - | - | - |
| EN-8 | 750-900 | OIL | 150-200 | - | 1040 | |
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | - | - |
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | - | - |
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | - | - | |
| EN-44 | 650-750 | OIL | 150 | 45-50 | - | - |
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | - | 9255 |
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | - | - |
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | - | - |
