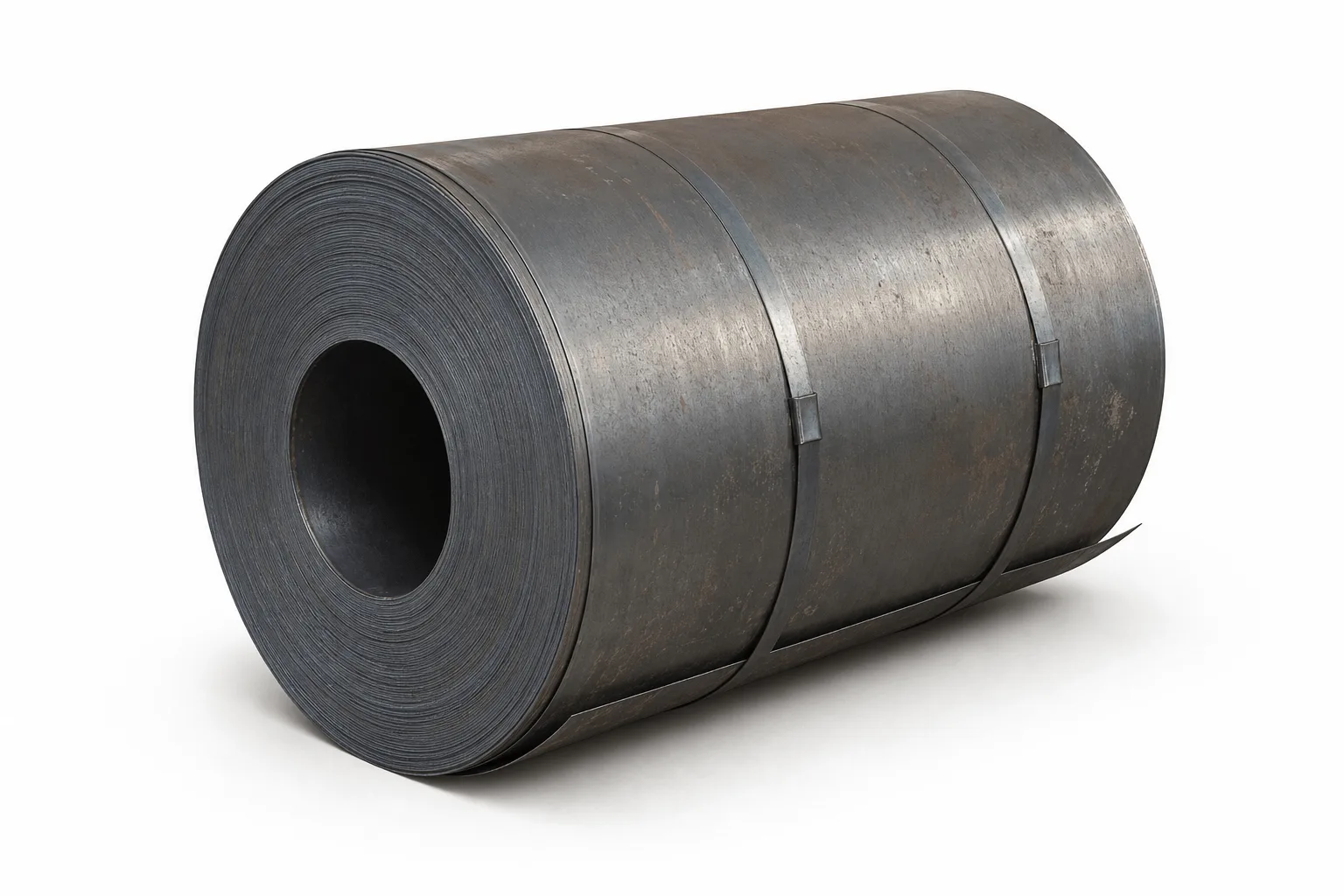

DIN 17155 Pressure Vessel Carbon Steel Coil
SKU: HC-1134549068779192320
DIN 17155 pressure vessel steel coil is made of steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
DIN 17155 pressure vessel steel coil is made of steel for boilers and pressure vessels. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid delivery pipes. DIN 17155 pressure vessel coil not only has very high strength but also has very good toughness, wear resistance, fatigue resistance, impact resistance, easy welding processability and cold forming performance. DIN 17155 pressure vessel steel coil is widely used in gas, petrochemical and other industries, especially suitable for manufacturing boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic Bracket etc.
Specifications
Product Parameters
| Product Name | DIN 17155 Pressure Vessel Carbon Steel Coil |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 45mm-2200mm |
| Length | Custom Size |
| Thickness | Hot Rolling: 2.75mm-100mm Cold Rolling: 0.2mm-3mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
Chemical Composition
| DIN 17155 | C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo |
|---|---|---|---|---|---|---|---|---|---|---|
| 15Mo3 | 0.12-0.20 | 0.10-0.35 | 0.40-0.90 | 0.035 | 0.03 | - | 0.25 | 0.3 | 0.3 | 0.25-0.35 |
| 13CrMo44 | 0.08-0.18 | 0.10-0.35 | 0.40-0.10 | 0.035 | 0.03 | - | 0.70-1.10 | 0.3 | - | 0.4-0.6 |
| 17Mn4 | 0.14-0.20 | 0.4 | 0.90-1.40 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
| 10CrMo9-10 | 0.06-0.15 | 0.5 | 0.40-0.70 | 0.035 | 0.03 | - | 2.00-2.50 | 0.3 | - | 0.9-1.0 |
| 19Mn6 | 0.2 | 0.5 | 0.90-1.70 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HI | 0.16 | 0.35 | 0.40/1.20 | 0.03 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 |
| HII | 0.2 | 0.35 | 0.50-1.30 | 0.035 | 0.03 | 0.02 | 0.25 | 0.3 | 0.3 | 0.1 |
Equivalent Material
| DIN 17155 | Material No. | EN 10028-2 | UNI 5869 | BS 1501 | A 36087 | ASTM | JIS G3115 |
|---|---|---|---|---|---|---|---|
| HI | 1.0345 | P235GH | Fe360 - 1KW | 161 Gr.360 / 164 Gr.360 | A37 RCI | A 285 Gr.C/ A 414 Gr.C / A 516 Gr.55 | SPV 24 |
| HII | 1.0425 | P265GH | Fe410 - 1KW | 161 Gr.400 / 164 Gr.400 / 224 Gr.400 | A42 RCI | A 414 Gr.E / A 516 Gr.60 | - |
| 17Mn4 | 1.0481 | P295GH | Fe460 - 1KW | 224 Gr.490 | A47 RCI | A 414 Gr.F / A 516 Gr.65 | SPV 32 |
| 19Mn6 | 1.0473 | P355GH | Fe510 - 1KW | - | A52 RCI | A 414 Gr.G | SPV 36 |
| 15Mo3 | 1.5415 | 16Mo3 | 15Mo3 | 1503 - 243 B | 16Mo3 | A 204 Gr.B | - |
| 13CrMo44 | 1.7335 | 13CrMo4-5 | 14CrMo4.5 | 620 Gr.27 | 14CrMo4.5 | A 387 Gr.12 | - |
| 10CrMo910 | 1.7380 | 10CrMo9-10 | - | 622 Gr.31 | - | A 387 Gr.22 | - |
