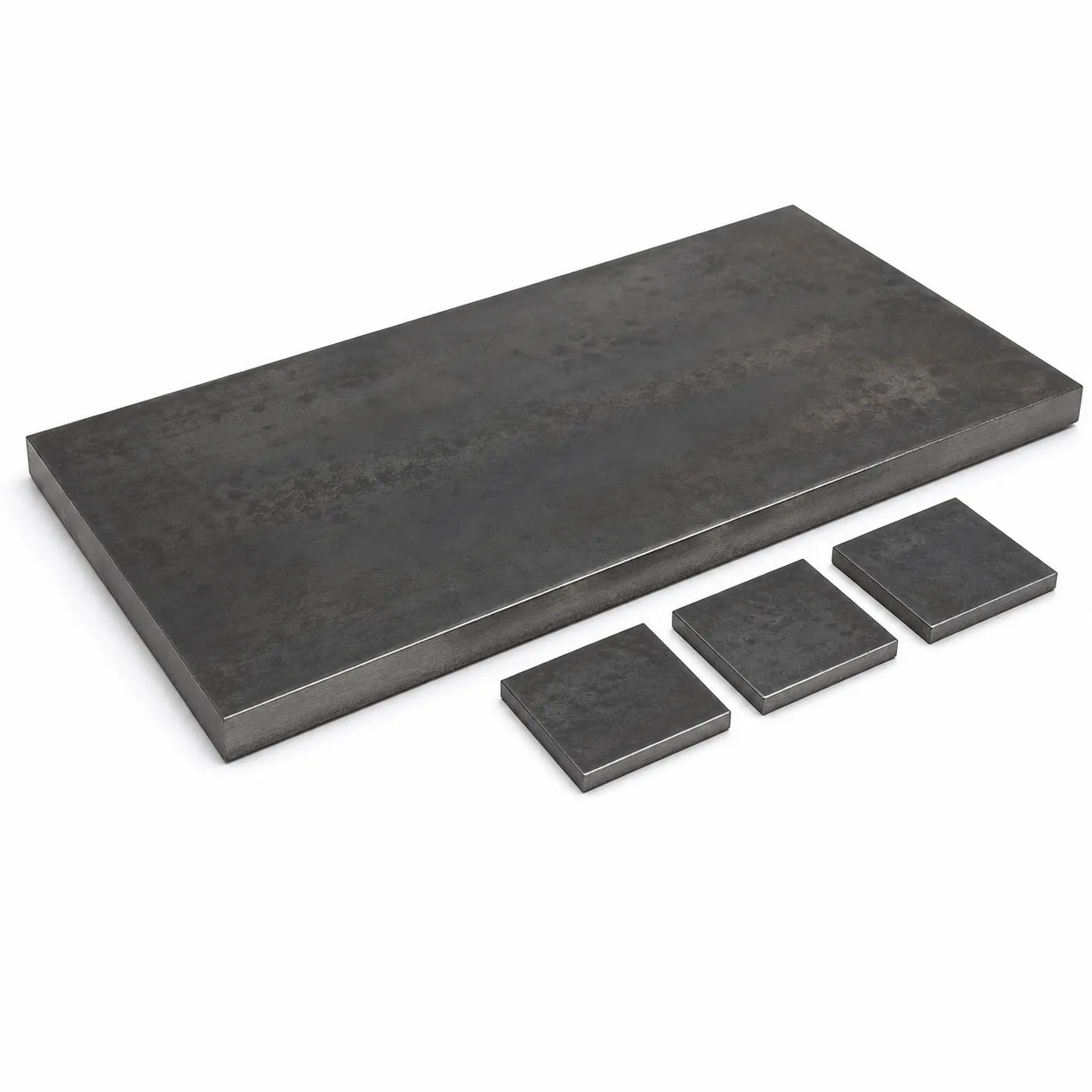

GB/T11251 1345 Alloy Structural Steel Plate
SKU: HC-1134529486897000448
GB/T 11251 alloy steel is one of the common hot-rolled alloy structural steel plates. This steel plate is widely used in various applications in bearings/gears of rotating machinery.

Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone:+86 15052357278
- Email:haven@hongchen-steel.com
- WhatsApp:+86 15052357278
Scan to chat

Product Description
GB/T 11251 alloy steel is one of the common hot-rolled alloy structural steel plates. This steel plate is widely used in various applications in bearings/gears of rotating machinery. GB/T 11251 alloy structural steel plate has high strength and wear resistance, high hardenability, moderate cold deformation plasticity, good cutting performance and good welding performance. During heat treatment, the toughness of steel decreases less. GB/T 11251 alloy steel can still maintain high toughness under water cooling conditions, but has the tendency of overheating sensitivity, white point sensitivity and temper brittleness. They are mostly used after quenching and tempering, and can also be used under positive inflammation or hot rolling conditions. Typical applications include valve bodies, pumps and fittings, wheels, bolts, studs, gears, high loads on internal combustion engines. Drive shafts on steel balls, rollers and bushings for electric locomotives, machine tools, tractors, steel rolling equipment, boring machines, railway vehicles and mining machinery, etc..
Specifications
Product Parameters
| Product Name | GB/T11251 1345 Alloy Structural Steel Plate |
| Production Process | Hot Rolling,Cold Rolling |
| Material Standards | AISI,ASTM,ASME,DIN,BS,EN,ISO,JIS,GOST,SAE,etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m,or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling,Annealing,Quenching,Tempered or Standard |
| Surface Process | Ordinary,Wire Drawing,Laminated Film |
chemical composition
| Brand | C | Si | Mn | B |
|---|---|---|---|---|
| 45Mn2 | 0.42-0.49 | 0.17-0.37 | 1.40-1.80 | - |
| 27SiMn | 0.24-0.32 | 1.10-1.40 | 1.10-1.40 | - |
| 40B | 0.37-0.44 | 0.17-0.37 | 0.60-0.90 | 0.0005-0.0035 |
| 45B | 0.42-0.49 | 0.17-0.37 | 0.60-0.90 | 0.0005-0.0035 |
| 50B | 0.47-0.55 | 0.17-0.37 | 0.60-0.90 | 0.0005-0.0035 |
Mechanical Properties
| Brand | Yield Strength MPa min. | Elongation min. % |
|---|---|---|
| 45Mn2 | 600 | 13 |
| 27SiMn | 550 | 18 |
| 40B | 500 | 20 |
| 45B | 550 | 18 |
| 50B | 550 | 16 |
Equivalent Material
| China | United States | Germany | Japan | France |
|---|---|---|---|---|
| 45Mn2 | 1345 | 46Mn7 | SMn3 | 45M5 |
| 27SiMn | - | 27MnSi5 | - | |
| 40B | 14B35 | 35B2 | - | - |
| 45B | 50B46H | 45B2 | - | - |
| 50B | 14B50 | - | - | - |
