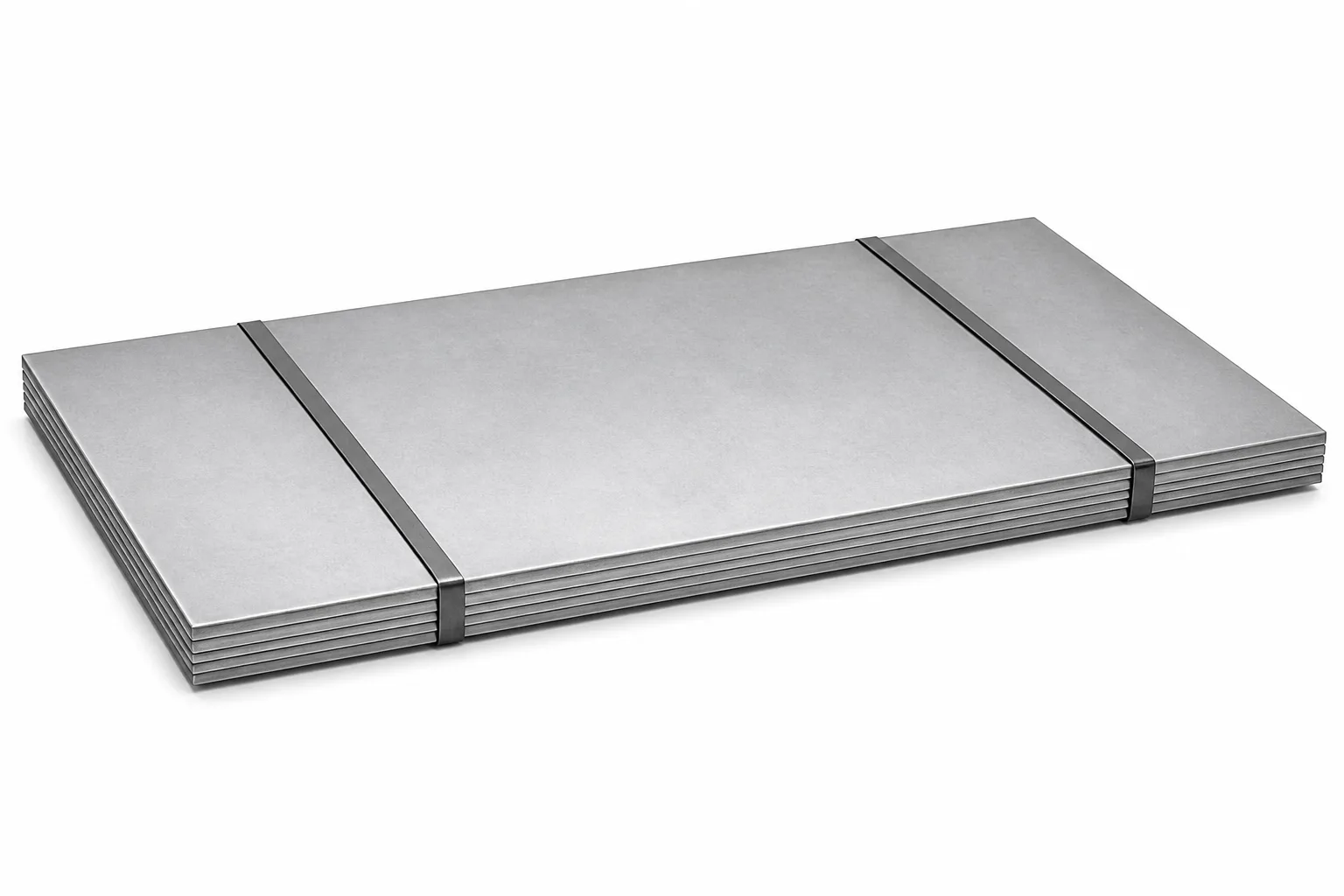

Docol 500DP Dual Phase Steel (DP)
SKU: HC-1141764444430221312
Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase. Bainite may also be present as a complementary phase.
Key Features
- ✓Third-Party Inspection Support
- ✓Sufficient Inventory Supply
- ✓International Standard Certification
- ✓Custom Processing Service
Contact Us
- Phone：+86 15052357278
- Email：haven@hongchen-steel.com
- WhatsApp：+86 15052357278
Scan to chat
Product Description
Docol 500DP: Docol 500DP dual-phase steel has good formability and weldability and is suitable for automotive safety components such as reinforcements. This steel is subjected to a special heat treatment, which mainly produces a two-phase structure. Ferrite, which can impart formability, represents one phase, while martensite, which is responsible for strength, represents the other phase. Bainite may also be present as a complementary phase.
Specifications
Mechanical Properties
| Steel Grade | Standard | Plating | Test Direction | Yield Strength R p0.2 (MPa) | Tensile Strength R m (MPa) | Extension Rate A 80 (min%) | Minimum Bend Inner Diameter for 90 ° Bend |
|---|---|---|---|---|---|---|---|
| Docol CR 290Y490T-DP | VDA239- 100:2016 | UC,GI,GA*,FR | L | 290-380 | 490-600 | 24 | UC 0.0xt GI,GA,FI 0.5xt |
| Docol CR 230Y500T- DL | SSAB | UC | T | 230-300 | 500-600 | 24 | 0.0xt |
| Docol CR 290Y500T- DP | SSAB | UC | T | 290-370 | 500-600 | 20 | 0.0xt |
Chemical Composition
| Steel Grade | Plating | C (max %) | Si (max %) | Mn (max %) | P (max %) | S (max %) | Al (%) | Cr Mo (max%) | B (max %) | Nb Title (max %) |
|---|---|---|---|---|---|---|---|---|---|---|
| Docol CR 290Y490T-DP | UC | 0.10 | 0.50 | 1.00 | 0.025 | 0.010 | 0.015- | - | 0.10 | - |
| Docol CR 290Y490T-DP | GI,GA,ZA | 0.14 | 0.50 | 1.80 | 0.050 | 0.010 | 0.015-1.0 | 1.00 | 0.15 | 0.005 |
| Docol CR 230Y500T- DL | UC | 0.08 | 0.40 | 1.80 | 0.025 | 0.010 | 0.015- | - | 0.10 | - |
| Docol CR 290Y500T- DP | UC | 0.10 | 0.50 | 1.00 | 0.025 | 0.010 | 0.015- | - | 0.10 | - |
Plating
| Plating Type | Plating Grade | Standard | Single-sided coating quality,single-point test (g/m 2) | Single side thickness,for reference only (μm) |
|---|---|---|---|---|
| GI | 40/40 | VDA239-100 | 40-60 | 5.6-8.5 |
| GI | 50/50 | VDA239-100 | 50-70 | 7.0-9.9 |
| GI | 60/60 | VDA239-100 | 60-90 | 8.5-12.7 |
| GI | 70/70 | VDA239-100 | 70-100 | 9.9-14.1 |
| GI | 85/85 | VDA239-100 | 85-115 | 12.0-16.2 |
| GI | 115/115 | VDA239-100 | 115-155 | 16.2-21.8 |
| GA | 40/40 | VDA239-100 | 40-60 | 5.6-8.5 |
| GA | 50/50 | VDA239-100 | 50-80 | 7.0-11.3 |
| ZA | 95 | As required | 7- | |
| ZA | 130 | As required | 10- |
